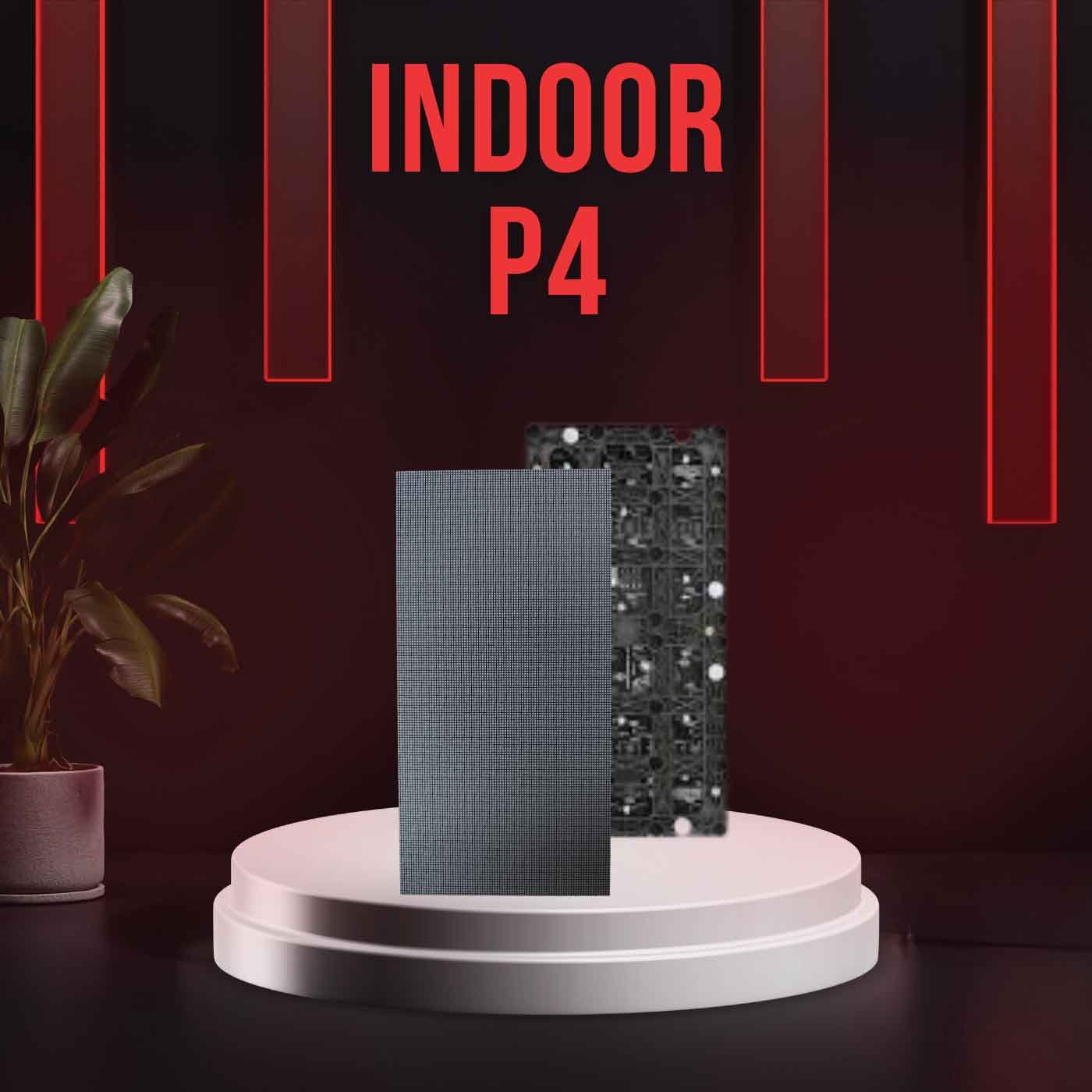

P4 Indoor SMD Module
A P4 Indoor SMD Screen (GKGD) is a high-resolution LED display designed for indoor use, featuring 4mm pixel pitch. Here’s a clear breakdown of its key details:
| Pixel Pitch | 4mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD2020 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 80*40mm(w*h) |
| Module Weight | 360+5g |
| Pixel Density | 62,500dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 26w/piece |
| Avg. Power Consumption | 13w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥4 meters |
Related products

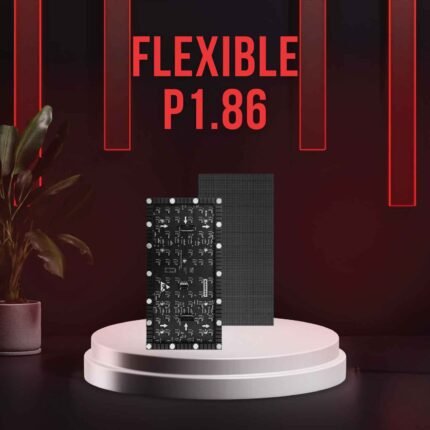

P1.86 Indoor SMD Module
The P1.86 Indoor GKGD LED module offers ultra-high resolution with a 1.86mm pixel pitch, perfect for close-viewing environments like control rooms, studios, and retail displays. It delivers sharp visuals, stable performance, and easy maintenance for premium indoor applications.
| Pixel Pitch | 1.86mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1515 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 172*86mm(w*h) |
| Module Weight | 486g |
| Pixel Density | 288,906dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 25w/piece |
| Avg. Power Consumption | 13w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥1.86 meters |
P2.5 Indoor SMD Module
A P2.5 Indoor SMD screen refers to an LED display panel with a pixel pitch of 2.5mm, designed for indoor use using Surface-Mounted Device (SMD) technology. Here are some key technical and functional details:
| Pixel Pitch | 2.5mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD2020/SMD1515 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 128*64mm(w*h) |
| Module Weight | 431g |
| Pixel Density | 160,000dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 22w/piece |
| Avg. Power Consumption | 11w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥2.5 meters |
P5 Indoor SMD Module
The P5 indoor LED display features a 5mm pixel pitch, offering a balance of cost and clarity for medium-range viewing applications. It’s widely used in indoor advertising, events, and stage backdrops where vibrant visuals and durability are essential.
| Pixel Pitch | 5mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD2020 |
| Module Size | 64*32mm(w*h) |
| Module Resolution | 128*64mm(w*h) |
| Module Weight | 290g |
| Pixel Density | 40,000dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 16w/piece |
| Avg. Power Consumption | 8w/piece |
| Refresh Rate | ≥1920Hz |
| Min. Viewing Distance | ≥5 meters |
