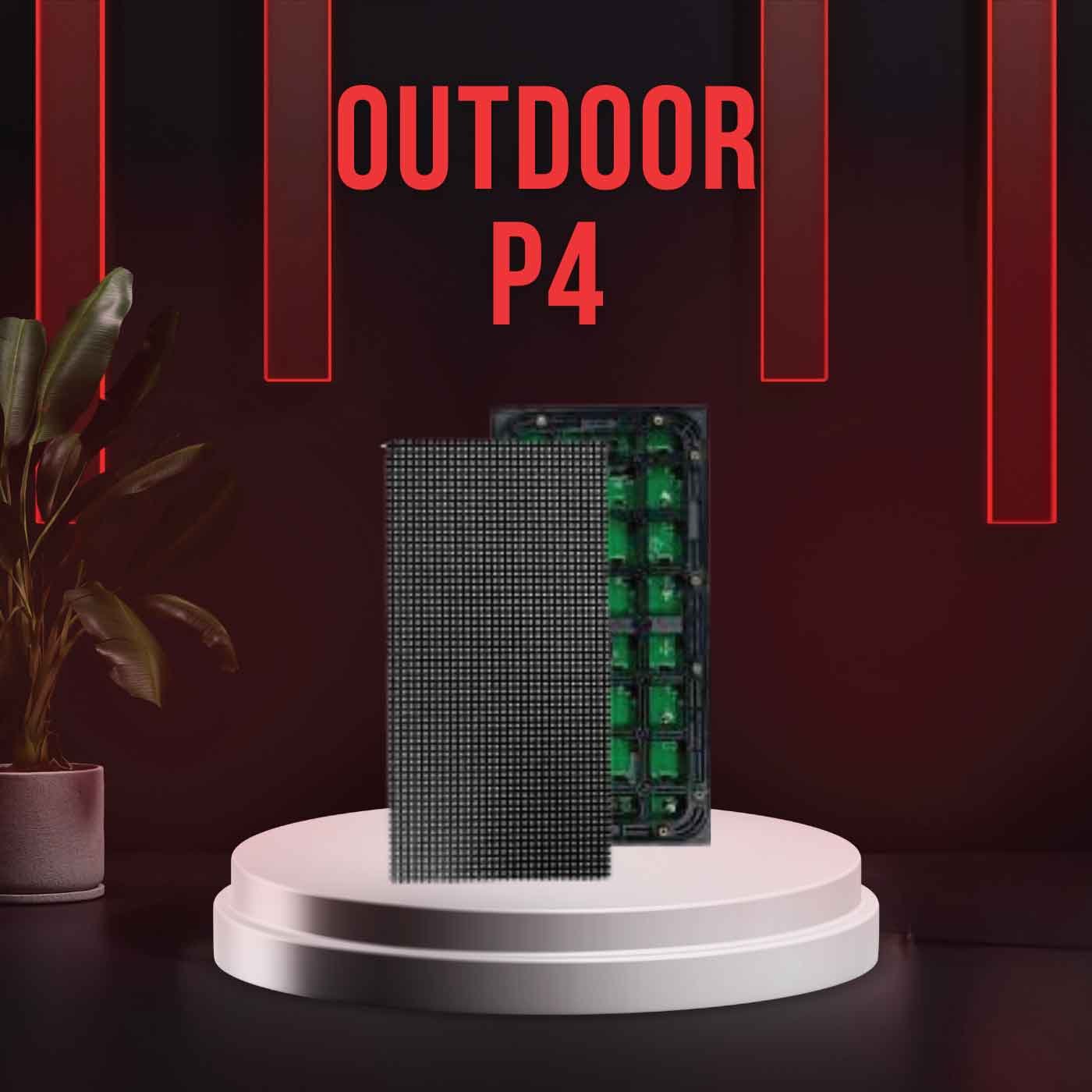

P4 Outdoor SMD Module
These specifications make P4 outdoor SMD LED modules versatile and suitable for a wide range of outdoor applications where durability, visibility, and performance are critical.
| Pixel Pitch | 4mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1921 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 80*40mm(w*h) |
| Module Weight | 435g |
| Pixel Density | 62,500dots/m² |
| Brightness | ≥5000cd/m² |
| Max. Power Consumption | 33w/piece |
| Avg. Power Consumption | 17w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥4 meters |
Related products
P10 Outdoor SMD Module
Al-Noor SMD Screens proudly introduces the P10 Outdoor SMD Screen in Pakistan. Experience unparalleled clarity with our high-brightness 4K LED display, designed to be energy efficient. Our SMD technology is Ideal for indoor and outdoor use and is perfect for branding solutions and live-streaming displays.
| Pixel Pitch | 10mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD2727 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 32*16mm(w*h) |
| Module Weight | 435g |
| Pixel Density | 10,000dots/m² |
| Brightness | ≥5000cd/m² |
| Max. Power Consumption | 49.5w/piece |
| Avg. Power Consumption | 25w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥10 meters |
P3 Outdoor SMD Module
The Outdoor SMD P3Â High Refresh Rate LED Display Module is engineered for top tier
outdoor LED display screens, providing outstanding visual performance and reliability.
| Pixel Pitch | 3mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1415 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 104*52mm(w*h) |
| Module Weight | 450g |
| Pixel Density | 105,625dots/m² |
| Brightness | ≥5000cd/m² |
| Max. Power Consumption | 35w/piece |
| Avg. Power Consumption | 18w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥3 meters |

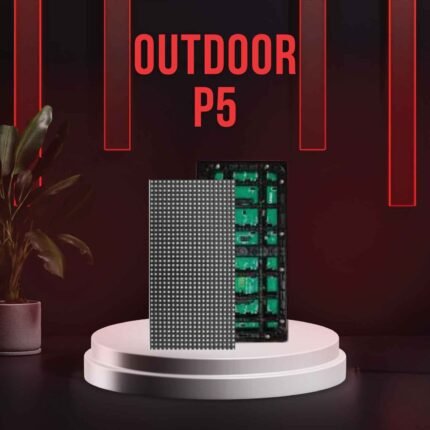

P5 Outdoor SMD Module
